Micro Prusik Minding Pulley Red

TECHNICAL SPECS

Case material: Aluminum Alloy
Sheave material: Aluminum
ATTENTION: Never slide a steel cable over the aluminum sheave!

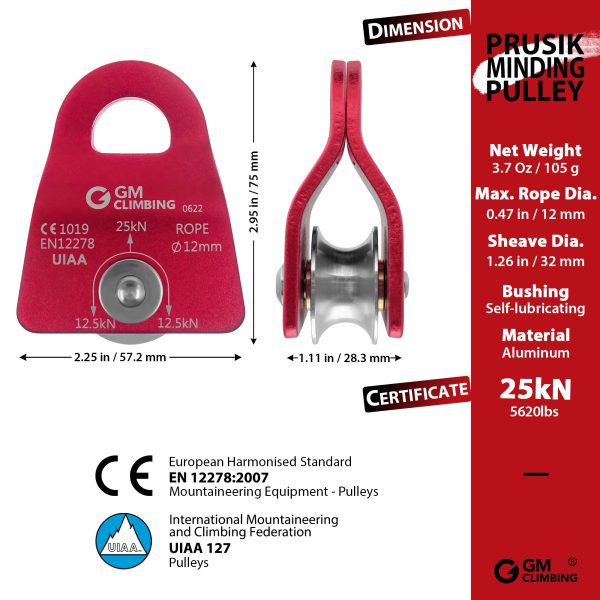

Dimension: 2.95 x 2.25 x 1.11 in / 75 x 57.2 x 28.3 mm
Breaking Strength: 25kN / 5620lbs
Net weight: 105g / 3.7Oz
Max. diameter of rope: 0.47 in or 12 mm
Certification: CE 1019 EN12278. UIAA

FEATURES

• Micro Prusik Minding Pulley (PMP). rated at 25kN/5620lbs MBS. both CE and UIAA certified. compatible with ropes up to 0.47 in / 12mm. Function pulley installed on ropes and clipped to tend hitch slacks in Ddrt climbing or work-positioning. A day-to-day use pulley in riggings. integrated with prusik hitches to build progress capture on haul system. making efficient redirects in bear rigging. home pulling exercise devices. and more to explore.
• Quality-made climbing pulley. with 25kN breaking strength [10kN higher than required 15kN by CE and UIAA]. to build up efficient pulley mechanical advantage systems: haul your partner out of the crevasse – personal rescue. rig gears or heavy loads when mountaineering. pull out a stranded car/ boat. haul food and stuffs out of reach when camping – bear rigging.
• Palm-size pulley in lightweight of 3.7 oz. The micro pulley is easy to use with only one hand. Mobile side plates rotate freely around the axle and it’s convenient to install the pulley anywhere on the rope. The pulley accommodates carabiners of most shapes since side plates are curved to stay fully close against each other on the top.
• Prusik Minding! The pulley is designed to be with flat bottom to side plates. which makes a PMP (prusik minding pulley) to be integrated into the progress capture on the haul system. and prevent brake hitches to be sucked into the pulley. for a more efficient haul.
• Smooth rotation due to the sheave being mounted with self-lubricating bushing that is efficient for transporting heavy loads. Most seen its functions in haul systems. tending hitches in climbing techniques. Also as an efficient general-purpose pulley for daily use. DIY pulley rope fitness home gym. suspending your bike in the garage. tensioning system for you slackline. and more.

PMP – Prusik Minding Pulley

The bottom of side plates is designed to be flat to form a prusik minding pulley.
Used at the anchor with brake hitches as progress capture which is critical in a haul system.
Prevent brake hitches to be sucked into the pulley. for a more efficient haul.
Also. a functional pulley to tend slack and advance hitches in Ddrt system or on a work-positioning lanyard.

STURDY and VERSATILE

Rated to 25kN breaking strength: 10kN higher than required 15kN by CE and UIAA.

Qualified to build up efficient pulley mechanical advantage systems:

• Haul your partner out of the crevasse

• Rig gears or heavy loads when mountaineering

• Pull out a stranded car/ boat

• Haul food and stuffs out of reach when camping – bear rigging

An efficient general-purpose pulley for daily recreational use:

• DIY pulley rope fitness home gym

• Suspending your bike in the garage

• Tensioning system for your slackline. and more
