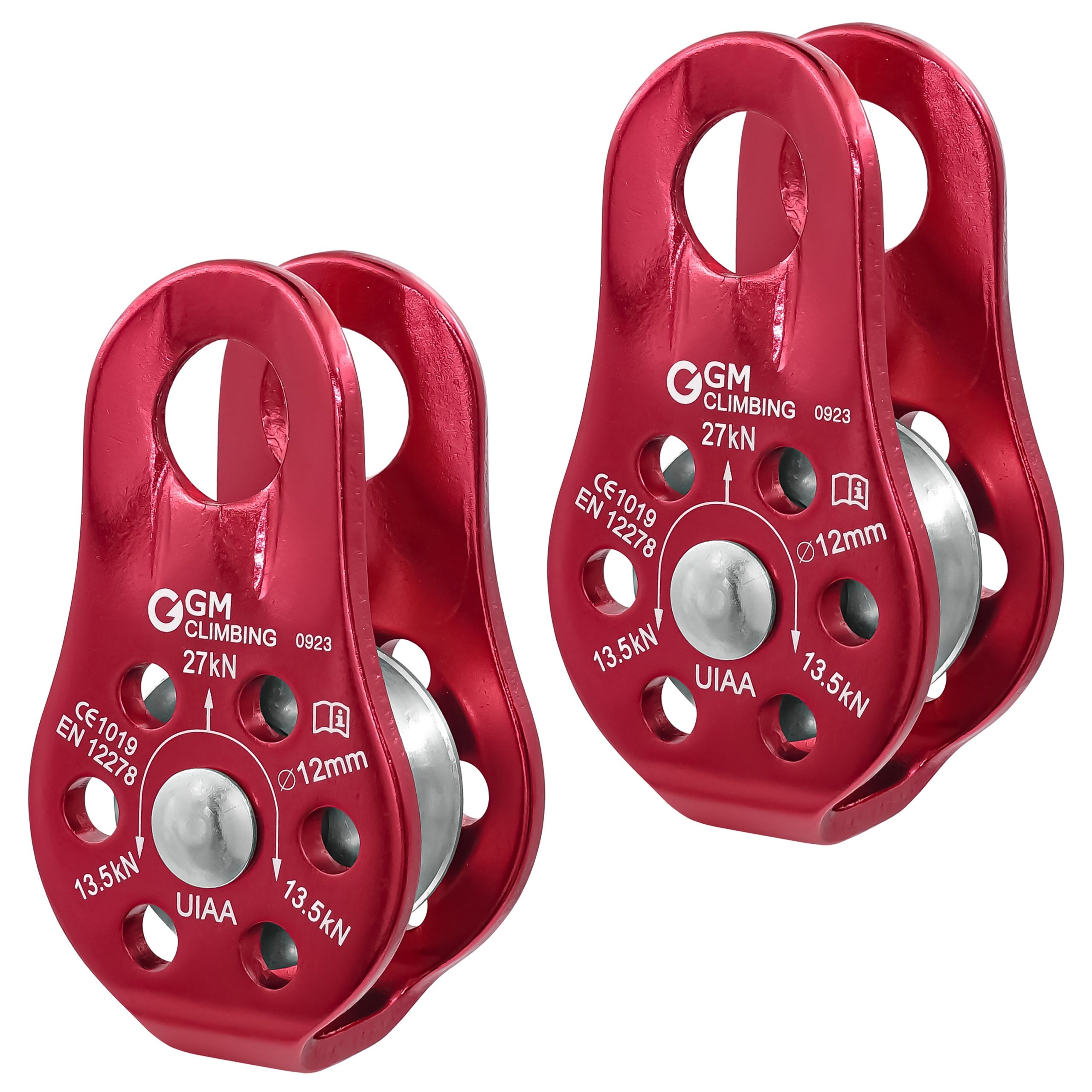

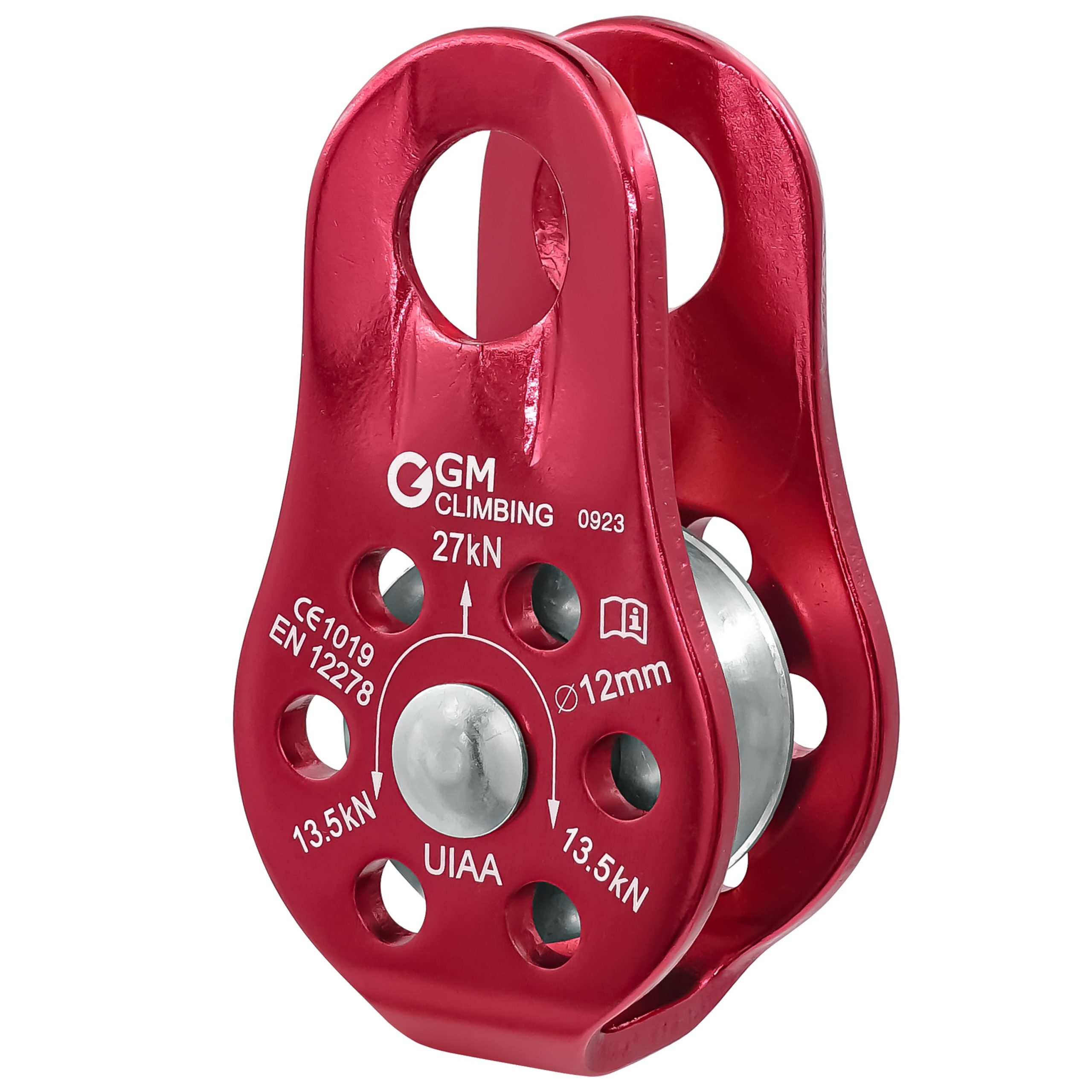

Micro Pulley Fixed Plate Slack Tender for Hitch Tending

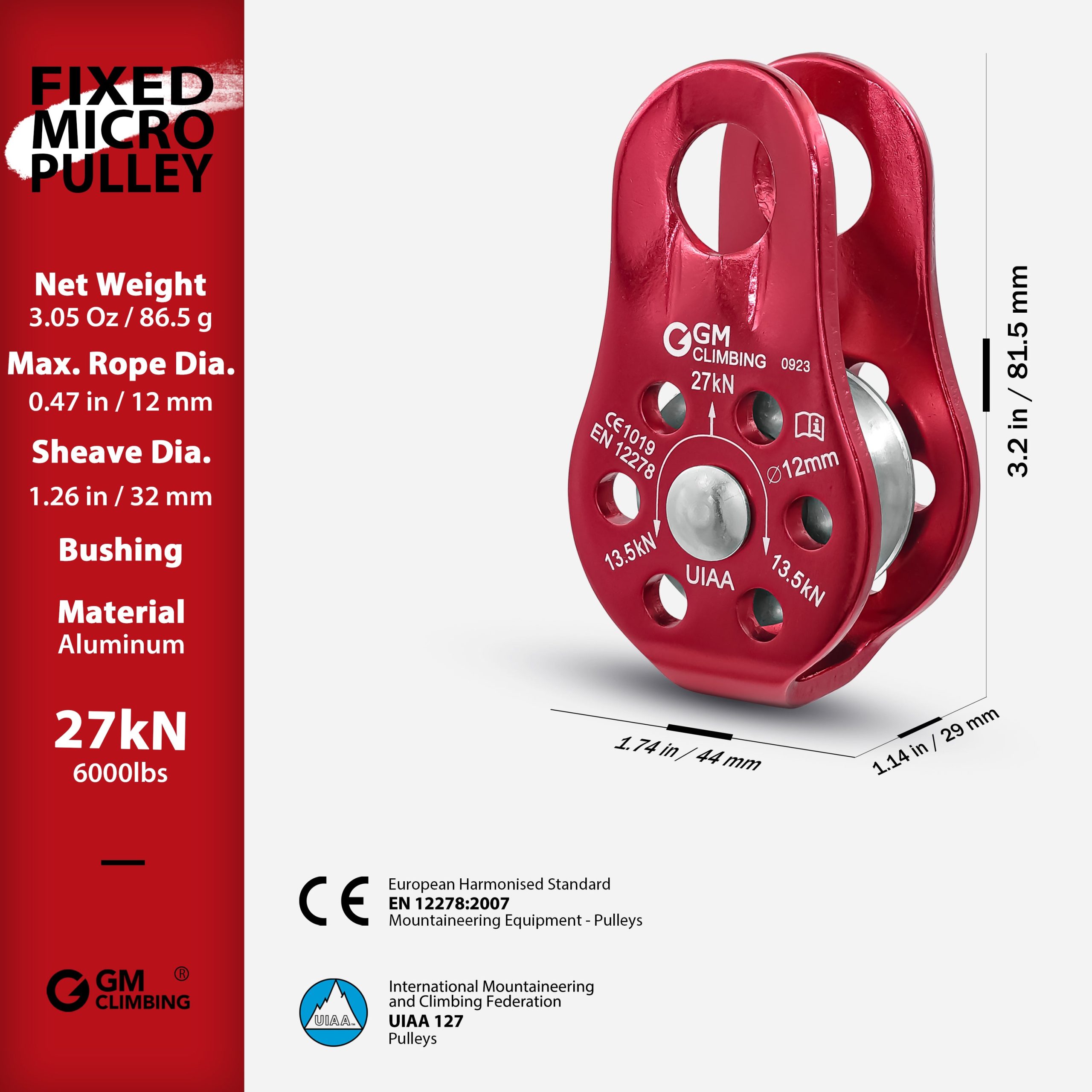

TECHNICAL SPECS

Breaking strength: 27kN / 6000lbs
Net weight: 3.05 Oz / 86.5 g
Dimension: 3.2 x 1.74 x 1.14 in / 81.5 x 44.3 x 29 mm
Max. Rope Dia.: 12 mm / 0.47 in
Sheave Dia.: 32 mm / 1.26 in
Sheave Material: Aluminum Alloy
Sheave bearing: Self-lubricating Bushing
Certificate(s): CE 1019 EN 12278:2007; UIAA 127: Safety Label No. CHN 17-4761
ATTENTION: Never slide steel cable over the pulley with aluminum sheave!

FEATURES

• Fixed Micro Pulley. rated at 27kN. CE and UIAA certified. works with ropes up to 0.47in/12mm. A functional pulley to advance hitches in Ddrt climbing systems. to tend hitch slacks on work-positioning lanyards; Makes an efficient redirect in light rigging. hauling. mechanical advantage systems.

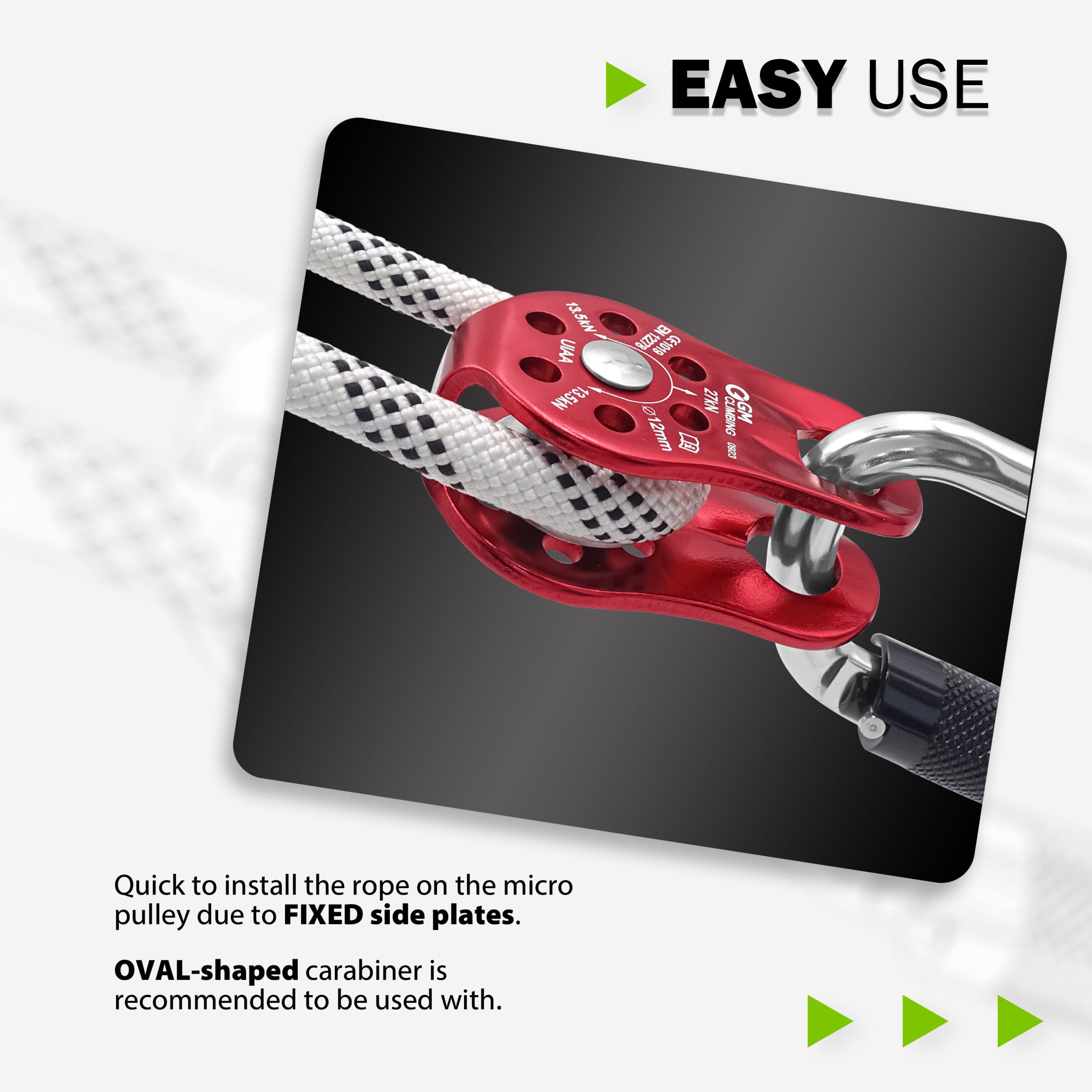

• EASY USE! It’s quick to install the rope on the micro pulley due to the fixed side plates. The oval-shaped carabiner is recommended to be used with. Pocket size allows easy operation on your palm to set up various climbing or rigging configurations.

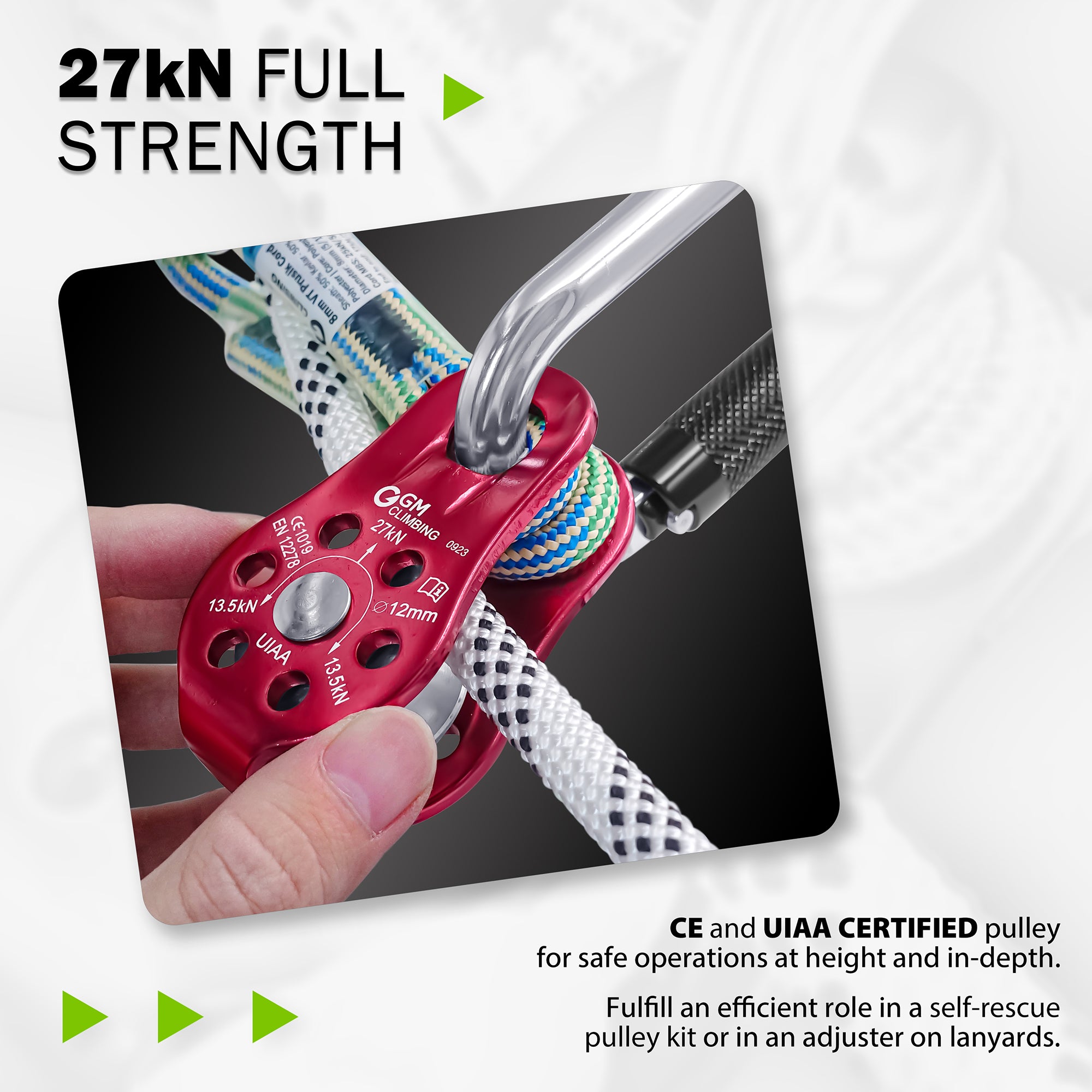

• 27kN strength rating! Fixed micro pulley offers full strength in lightweight of 3.05 Oz. capable of being an efficient part of your tree climbing. adjusters of work-positioning lanyards. and self-rescue pulley systems. CE and UIAA certified ensures a safe pulley for activities at height and in-depth.
• Smooth rotation due to the sheave being mounted with self-lubricating bushing that is efficient for transporting heavy loads. Aluminum plates with chamfered rounded edging reduce wear on the textile gears. well protecting ropes sliding through.
• A quality-made micro pulley. most seen its functions in tending hitches in climbing techniques. reducing wear when installed on the climbing harness rope bridge. Also as an efficient general-purpose pulley. the fixed micro pulley excels in redirects of rigging configurations. DIY pulley rope fitness home gym. hauling and dragging mechanical advantages systems.


A MUST-HAVE PULLEY

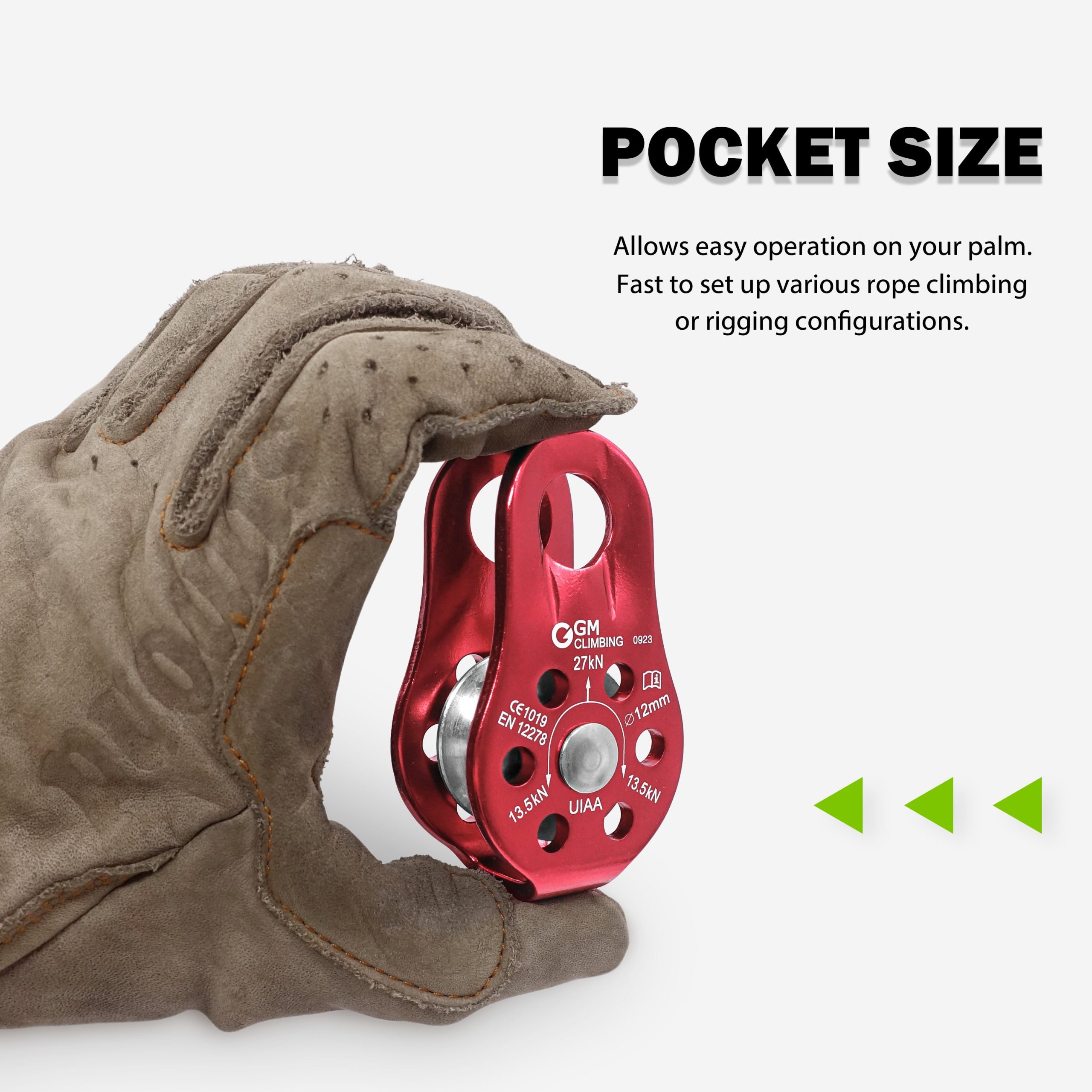

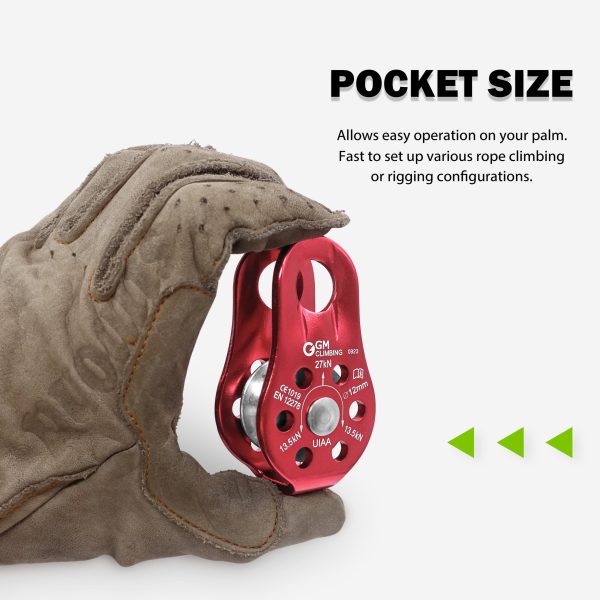

Light and Compact
This pocket-size pulley can easily fit in the backpack sack or pouch.
Weighs only 3.05 Oz. good for climbers. rescuers. hunters. and hikers to carry on outdoors where gear weight becomes a crucial consideration.
Rope-Friendly Side Plates
Side plates are made with chamfered rounded edges. minimizing the damage to ropes sliding through.
Quick to Install Ropes
The fixed side plates make it quick to install ropes on the pulley.

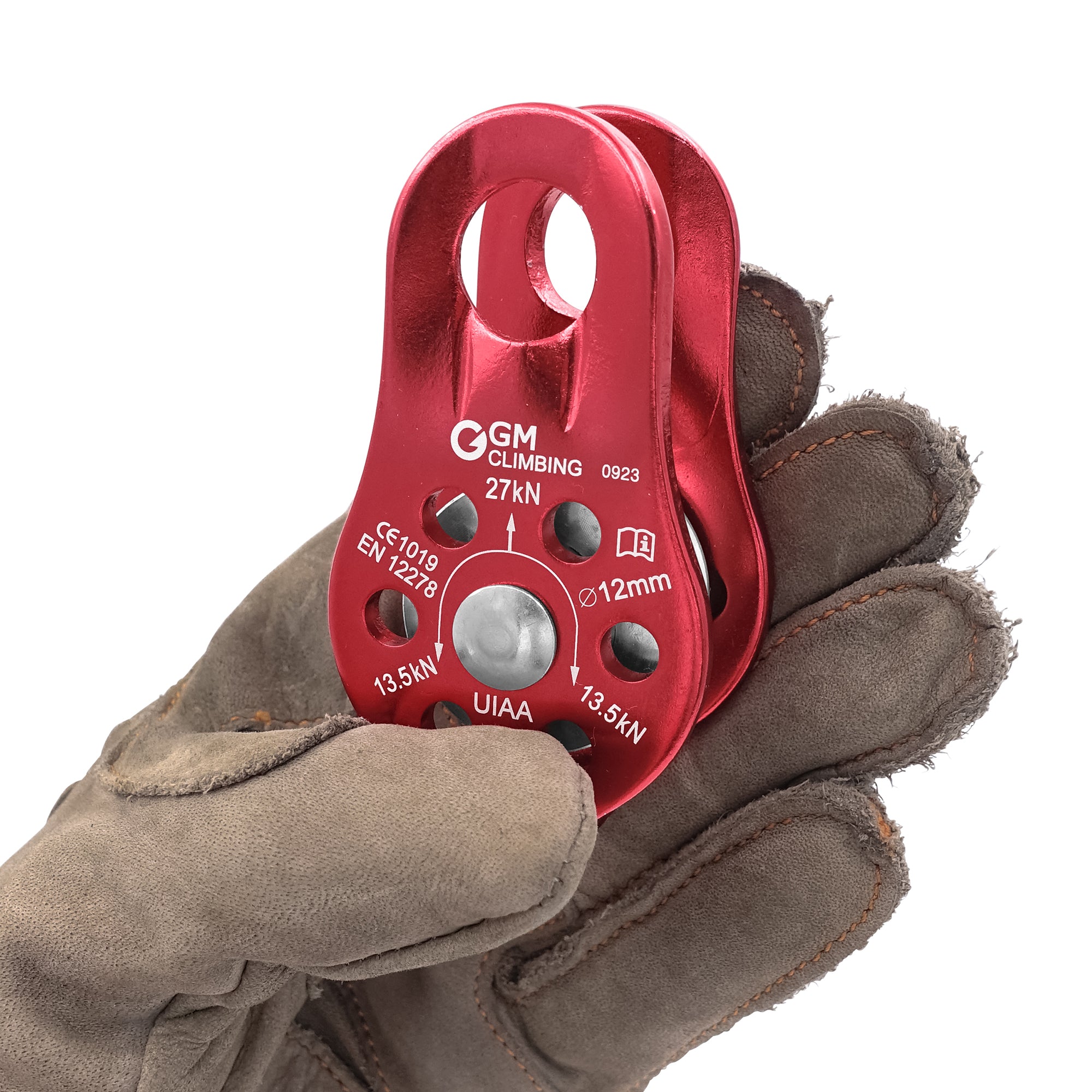

In integrating the pulley into rope systems. the operator can hold the pulley on the palm. and free another hand for other operations.

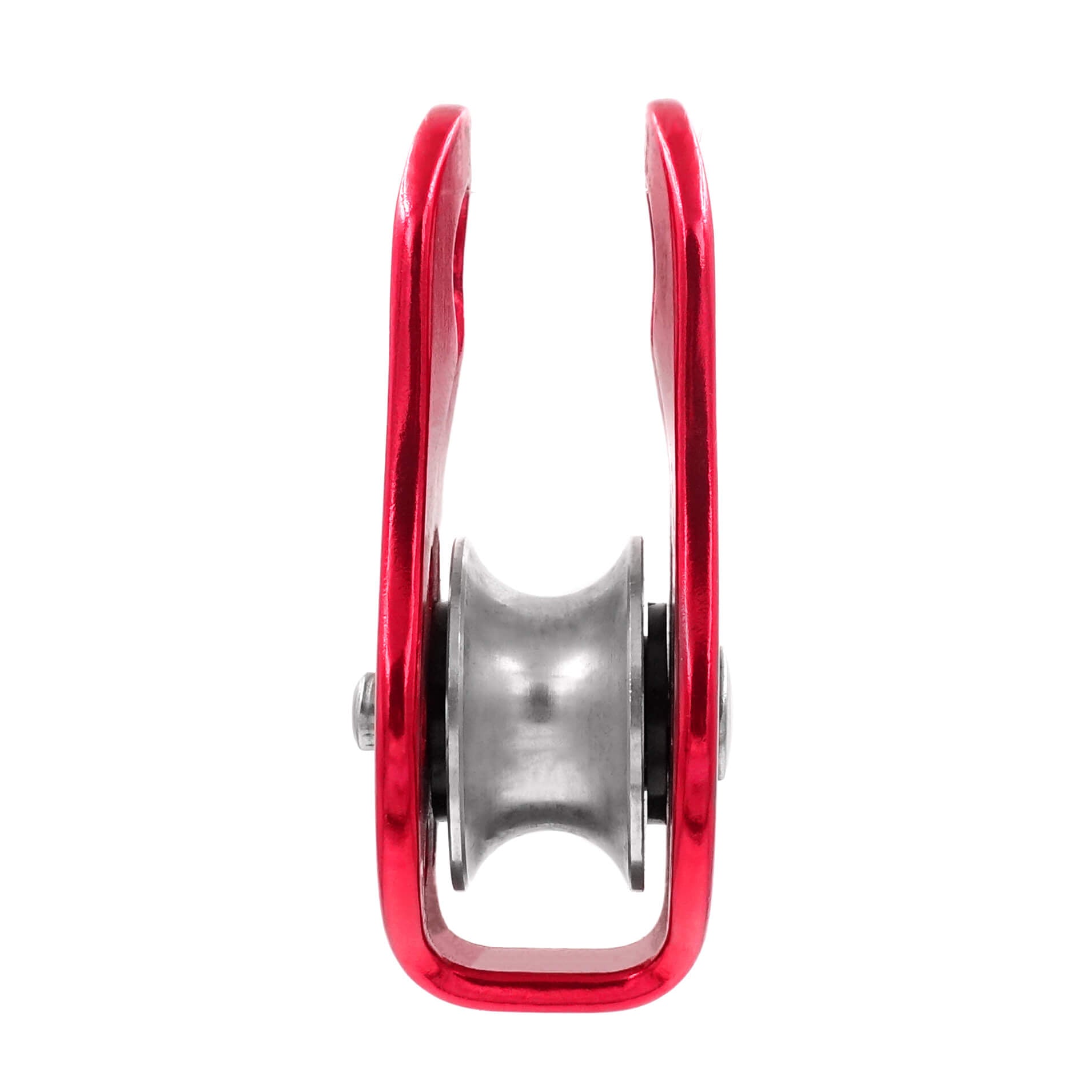

Self-lubricating Bushing
The aluminum pulley sheave is mounted with the self-lubricating bushing to efficiently transport heavy loads and for long service life.
ATTENTION: Nevers slide steel cables over the aluminum sheave.

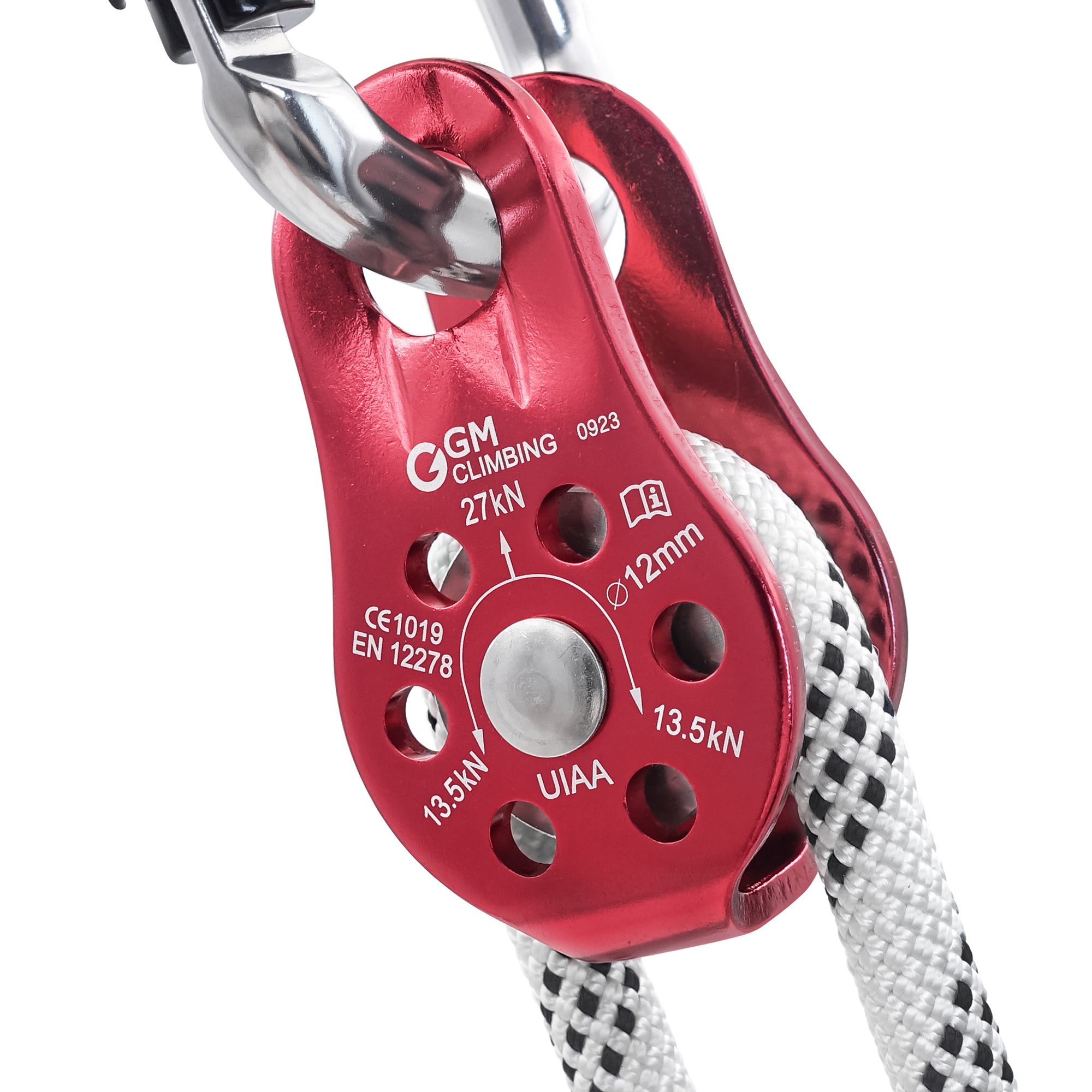

The oval-shaped carabiner is recommended to attach to the FIXED MICRO PULLEY.
NOTE: It’s forbidden to connect the two attachments together with ropes or slings to avoid the danger of pinching and cracking the side plates under load.

Functional and Versatile

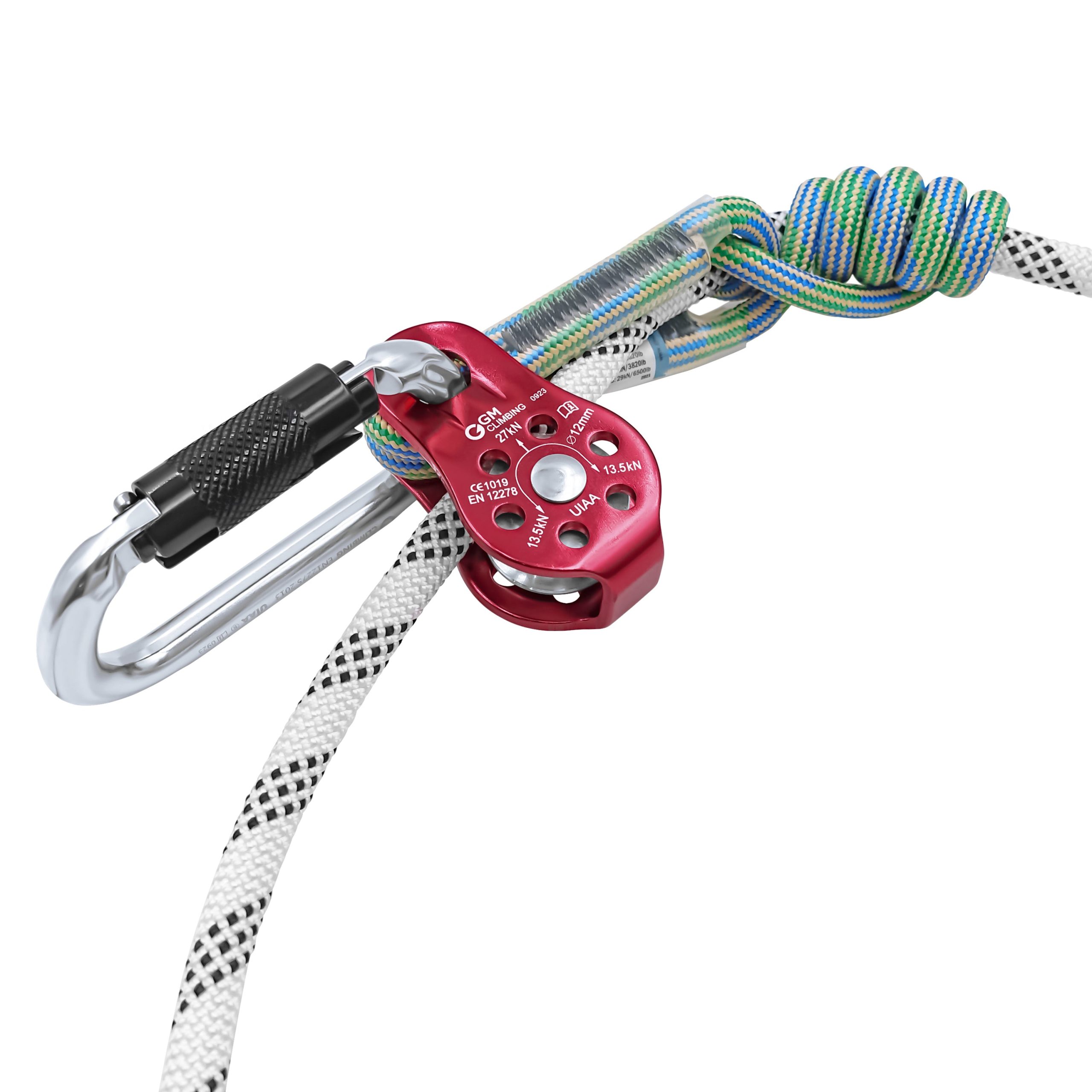

• Configured with Distel/VT hitch. be core part of Ddrt climbing systems or work-positioning lanyards
• Make 2:1. 3:1 haul system with or without process capture for both home and outdoor needs.
• Suspending food and scented items out of reach of bears.
• DIY home pulley rope pulling fitness device.

FIXED MICRO PULLEY

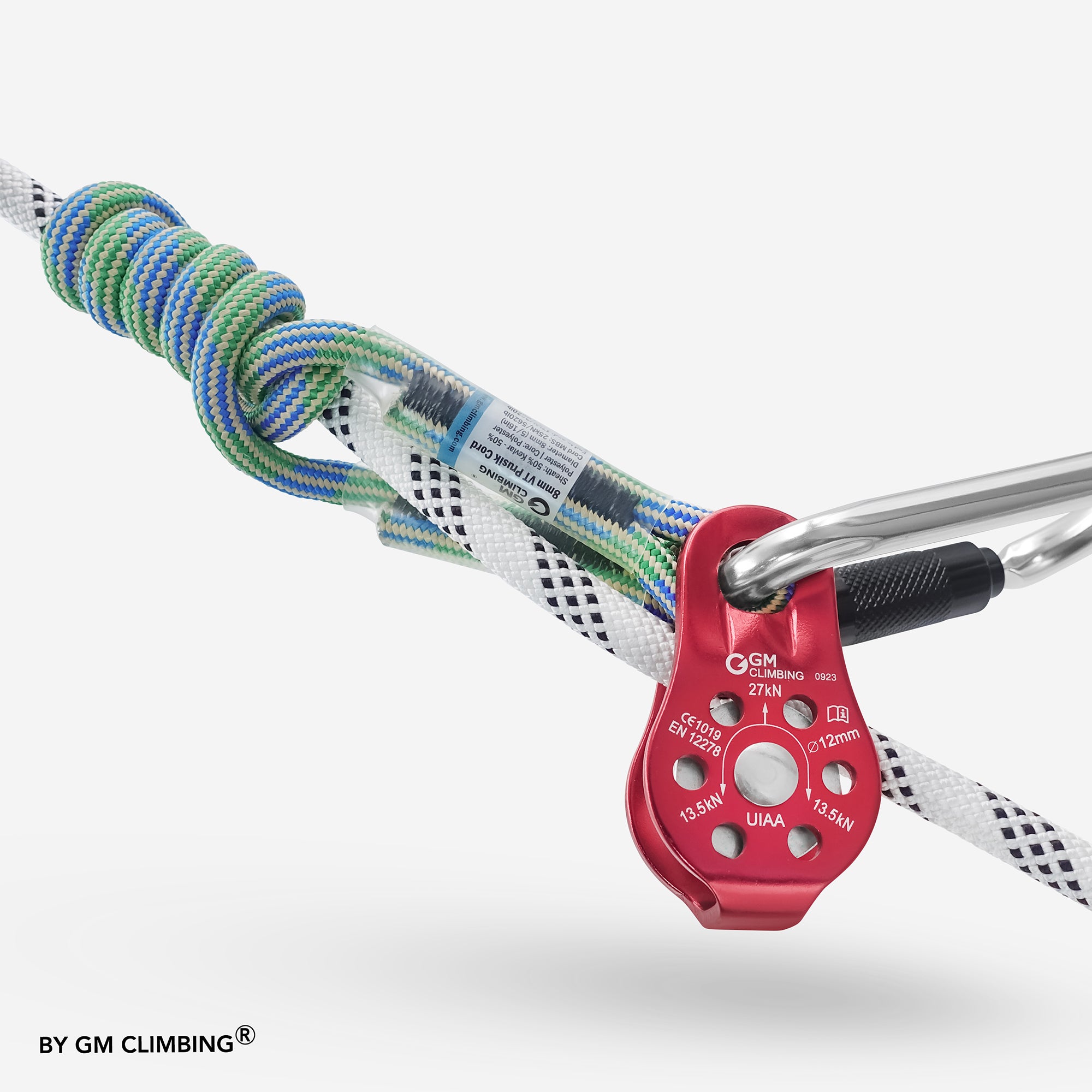

Used to tend slacks and advance hitches in rope climbing systems and on work positioning lanyards.
Mounted on the harness rope bridge to reduce overall frictions.
A quality-made general-purpose pulley.
Ideal in both home and outdoor uses to configure various redirecting. rigging. and pulling pulley systems.
