OVAL CARABINER is available in 3 different locking systems:
TECHNICAL SPECS
Locking: Twist locking
Material: 7075 Aircraft-grade Aluminum Alloy. Hot-forged
Standard Finish: Anodized
Dimension: 110 x 61 mm / 4.33 x 2.4 inch
Gate Opening: 21 mm / 0.83 inch
Net Weight: 85 g / 3 oz
Certificate: CE EN12275. UIAA 121
Breaking Strength:
- Major axis: 24kN / 5400Lbs
- Minor axis: 8kN / 1800Lbs
- Open gate: 7kN / 1570Lbs
FEATURES
Twist Lock
Two actions are required to open a twist lock carabiner.
To open a twist lock:
【1】Twist the sleeve by approximately 90° (a quarter turn) to unlock the gate.
【2】Push the gate to open.
To close a twist lock (automatically):
【1】The gate snaps shut when released.
【2】The sleeve automatically locks due to the spring-loaded mechanism.
Improved Oval Shape
Rather than being the standard oval shape. our new oval carabiner combines a tinge of D-shape to increase its strength and enlarge the gate opening.
The symmetrical oval shape can equilibrate and align the loading of the pulley with the other pieces of gear in the same system. It allows the optimal balance loading of the pulley systems.
Snag Free – Keylock System
Rope. sling or other equipment snagging caught can prevent the carabiner gate from closing adequately. which is dramatically dangerous.
Keylock gate closing embeds a notch-free T-shape nose that eliminates the hazards of ropes. slings. or bolts being snagged in clipping and unclipping.
T-shape nose is chamfered at every corners to be round and free of sharp edges.
Gate Sleeve
The gate sleeve is designed to have a rougher surface by adding grooves to increase friction. This facilitates carabiner manipulation. especially for operation with gloves.
Aircraft Grade Aluminum
Constructed from lightweight yet incredibly strong aircraft grade aluminum. oval carabiner boasts an anodized standard finish. ensuring resistance to corrosion. wear. rust. and fatigue. remaining essential for any exploration or environment.
Max load of 24kN. CE and UIAA certificate
Oval carabiner is tested and inspected annually according to EN 566 and UIAA 121.

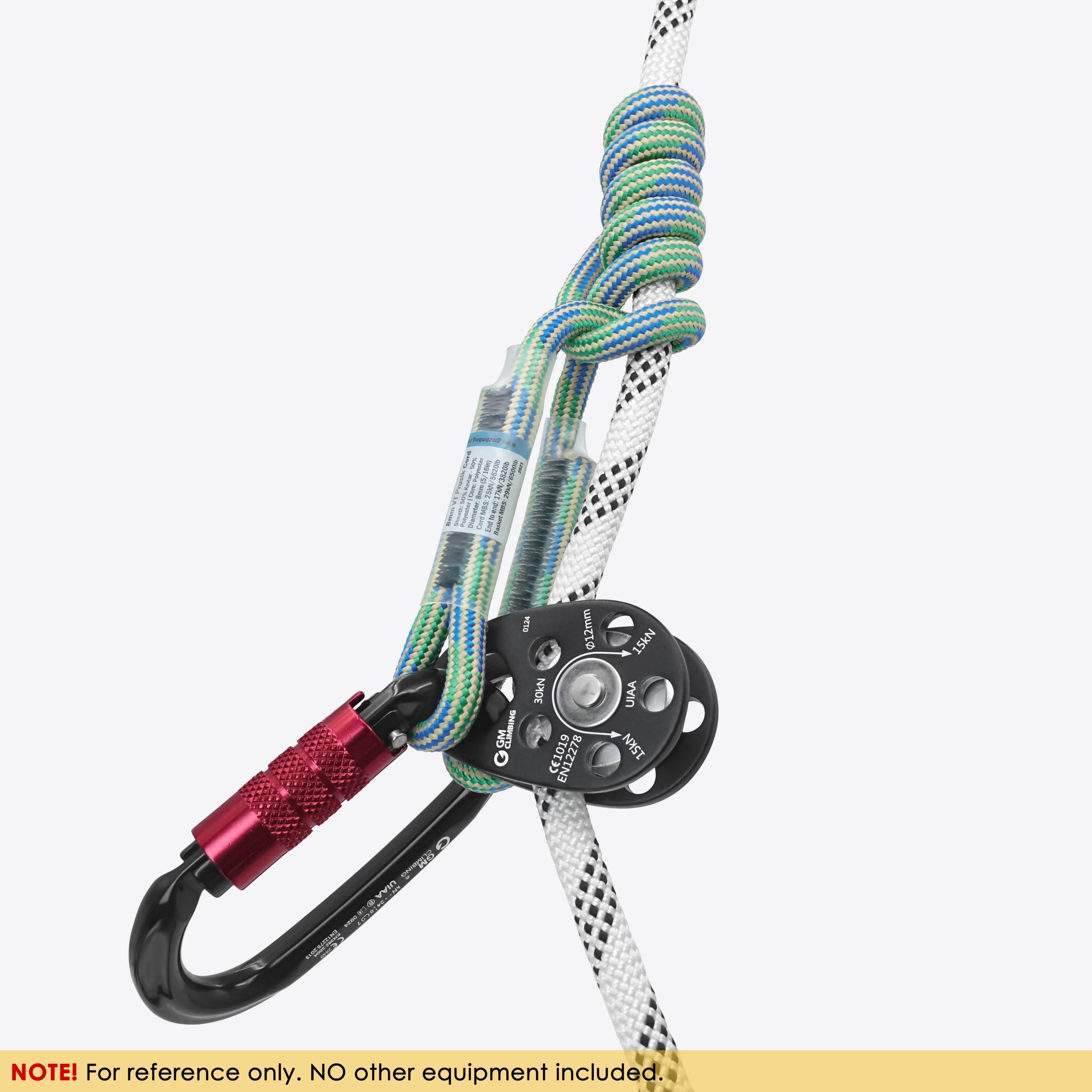

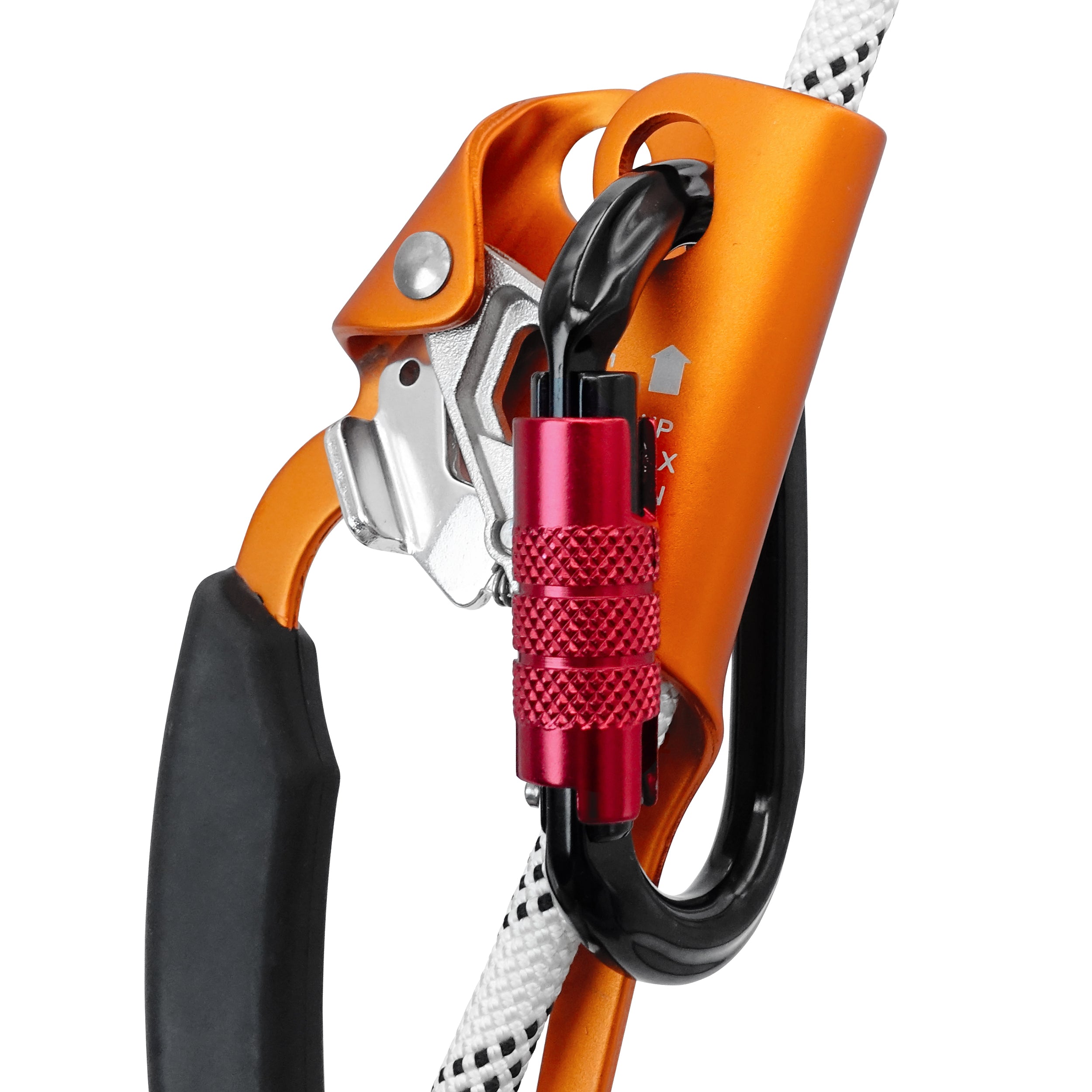

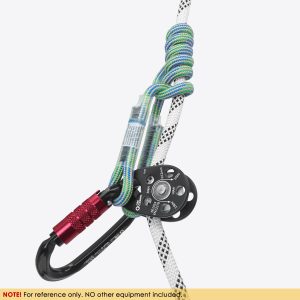

Ideal for pulley systems and rigging. loading devices. aid climbing. attaching rigging plates. and ascenders. as well as for setting up hauling system.
Intended for multiple mountaineering uses. and covers numerous outdoor/indoor applications with unbeatable properties.
Whether you’re scaling cliffs. exploring caves. or simply enjoying the serenity of nature. this carabiner is your reliable partner to safety and adventure.
